PRODUCTS > MUSICON™

MUSICON™

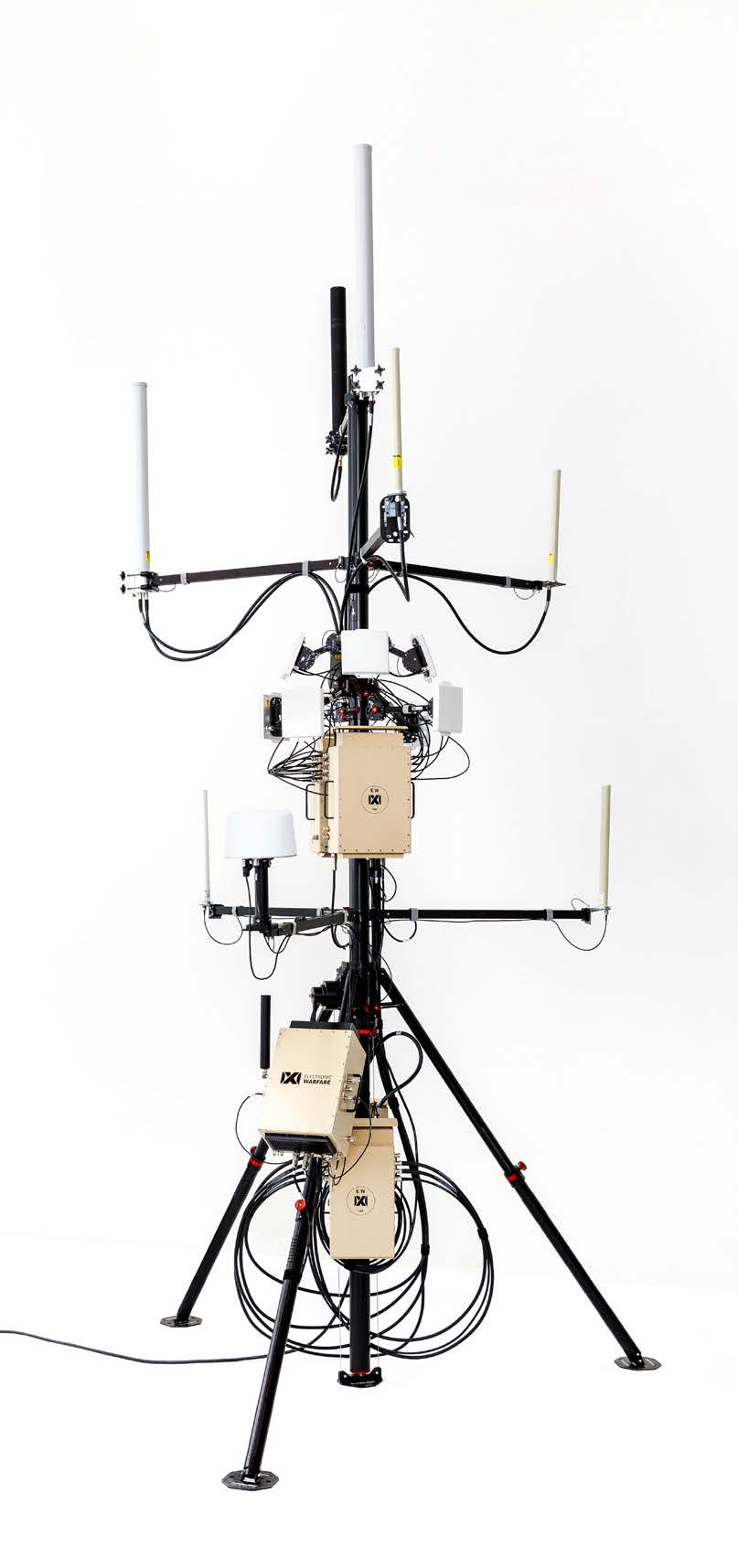

A cost-effective, long range UAS detection and mitigation system that responds to threats beyond the horizon. The system provides up to 360 degree interdiction of consumer UASs and other target emitters. transmitters for increased waveform effectiveness and transmit diversity. The system consists of a compact high power transceiver unit (HPX), a power control unit (PCU), and a set of omni directional antennas or antenna arrays. The system operates on external DC power. The system can be controlled by a computer through a USB to ethernet connection, and by an API.

Accurate detection and disruption in a single mobile system

Being able to detect specific UAS signatures at extended distances enables tactical teams to ready an appropriate response before a threat becomes a full-blown attack. Music ON is a portable counter UAS system for detection, range finding, telemetry and interdiction of Class 1 and Class 2 drones that can be successfully deployed in urban or battlefield environments. Music ON detects UAS frequency patterns and identifies the UAS detected, the UAS position relative to the MUSIC ON operator, range to UAS, and range to the UAS operator. This crucial intelligence gives teams a head-start on emergency situations when every second counts.

Features & Benefits

  • Portable system

    Unlike unwieldy fixed counter UAS systems, Music ON can be transported easily in light vehicles to remote locations.

  • Straightforward operation

    Data from MUSICON™ is delivered via a user-friendly mobile screen or with your existing ATAK interface.

  • Cost-effective

    MUSICON™ delivers the same capabilities as fixed position counter UAS systems for a fraction of the purchase price.

Technical Specifications

  • Color: Black/Desert/Custom
  • Operating temperature: -20° to +55°C
  • Frequency bands: 433MHz, 915MHz, 2.4GHz, 5.2GHz, 5.8GHz
  • Power source: External DC power
  • Detection time: 5 – 10 seconds
  • Detection range: Up to 10 km
  • Harsh environmentally resistant design
  • Easily adapted to other sensors or detection systems
  • Designed for extended periods on standby operation and interdiction
  • Flexible mounting options
Download Full Spec Sheet
This device has not been authorized for sale to non-Federal users as required by the rules of the Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased other than to the United States Government or federal agencies until authorization is obtained. IXI will not sell Music ON to non-federal users or any other unauthorized purchasers in the United States or its territories and will not complete any sales transactions originating with such consumers.
