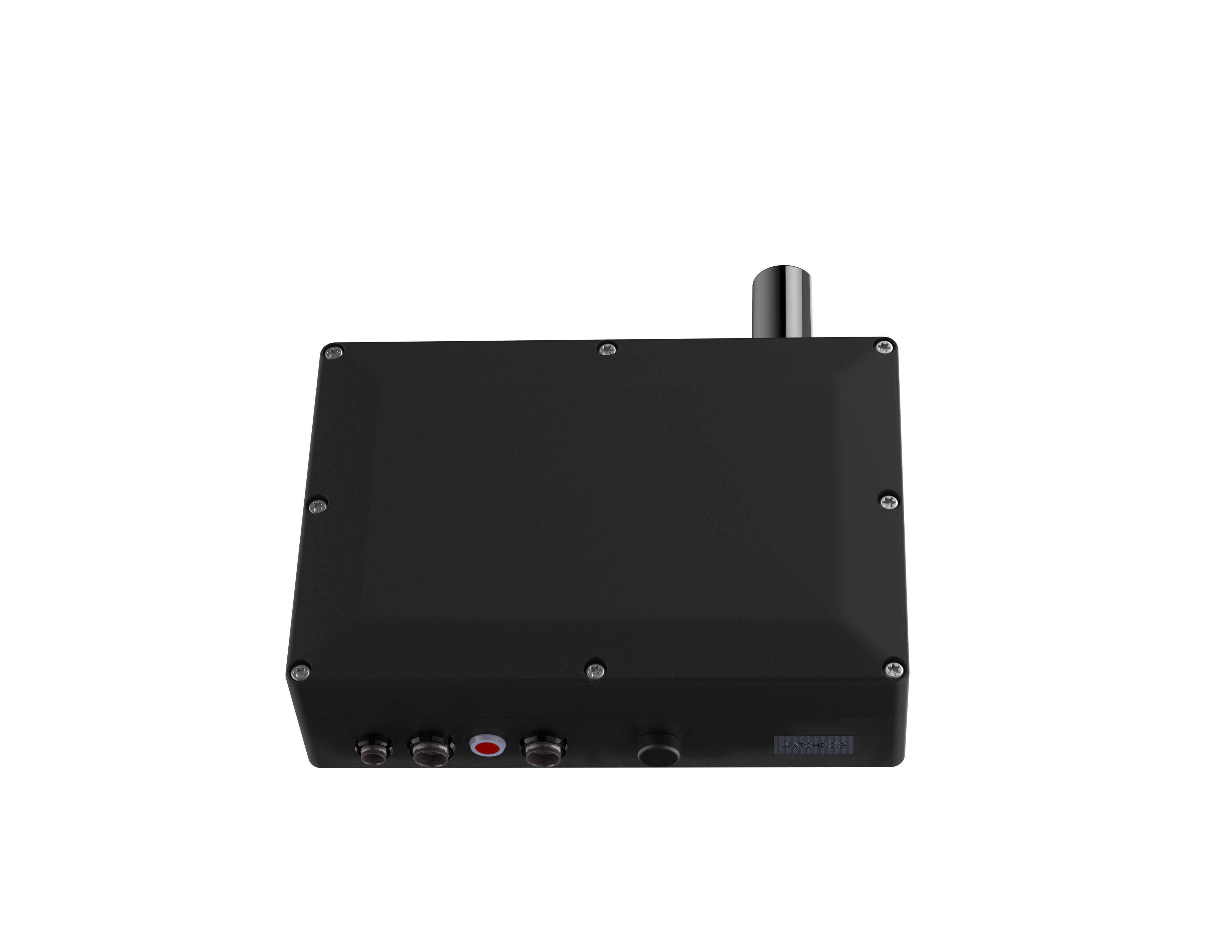

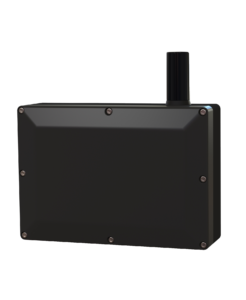

A networked RF sensor that provides information on drone protocol and vendor. Portable, lightweight, and easily integrated with existing C2 systems, CADENCE is ideal for fixed installations such as perimeter protection of prisons, military camps, and critical infrastructure. When deploying multiple CADENCE’s, bearing information can be used to determine the location of the drone or pilot.  

    Technical Specifications

    • Weight: 742 gram
    • Dimensions: (DxWxH) 175 x 100 x 42 mm
    • Color: Black
    • Operating temperature: -30° to +60°C
    • Frequency bands: 2.4GHz, 5.2GHz, 5.8GHz*
    • Power supply: Power Over Ethernet (PoE) (10W power budget)
    • Detection time: <5 sec for known targets
    • Detection range: Up to 7 km**
    • Coverage angle 90°
    • Accuracy of direction finding 5° RMS within ±45° from center
    • AA100 Antenna
      • Bands: 433, 915, 1.2
    • IP67
