PRODUCTS > DUET XL

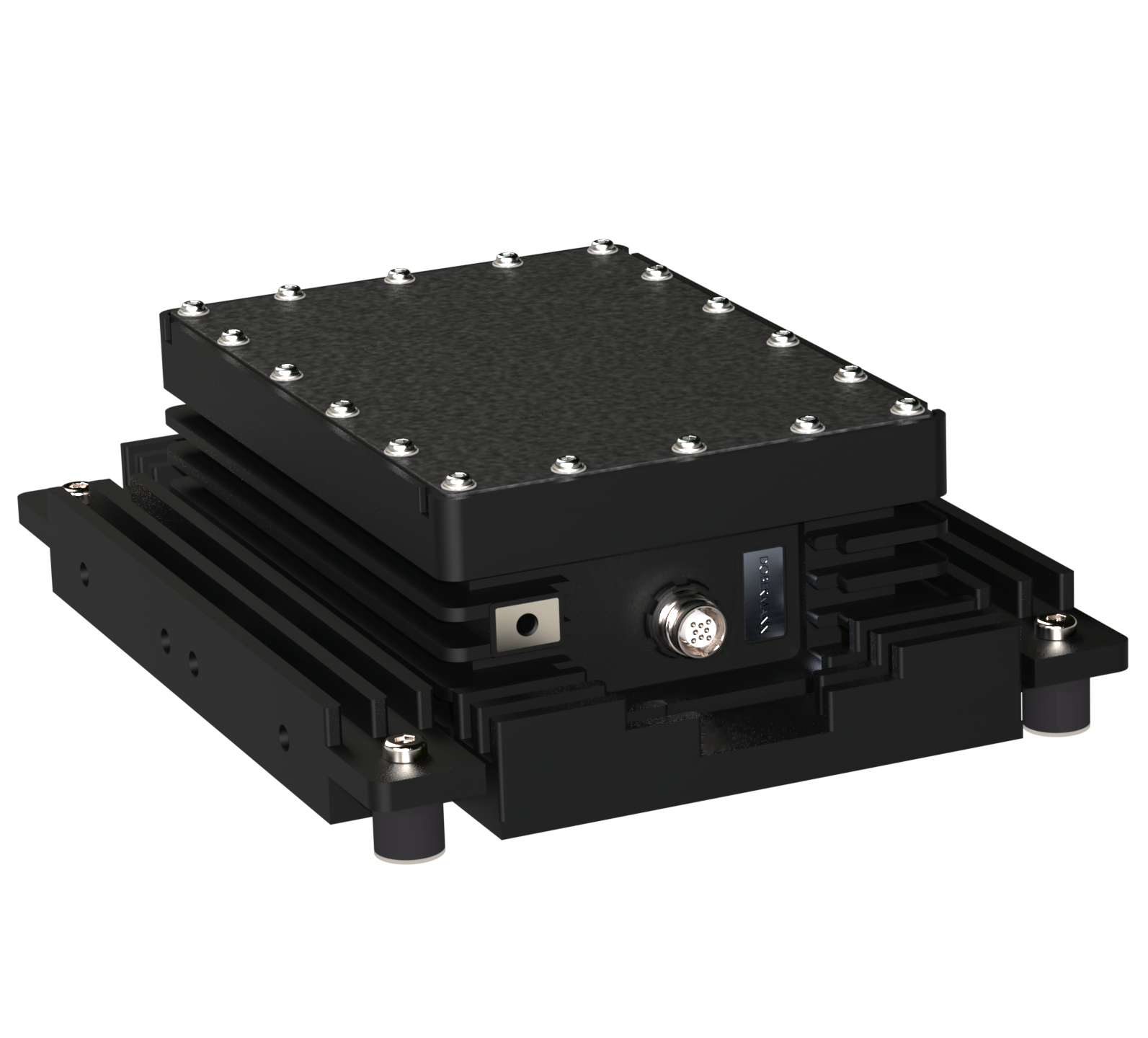

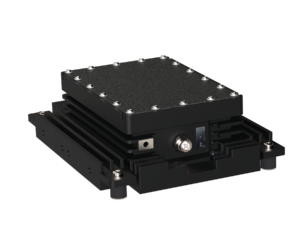

DUET XL

A networked jammer that actively disrupts the control signal between the drone and its operator. With its ruggedized design, it withstands the vibration and shock of military vehicles as well as hard environmental conditions such as dust, salt, and solar radiation. Used either autonomously or manually, DUET XL works with both CADENCE and CADENCE XL drone detectors, automatically jamming drone control signals once they are detected.  



    Technical Specifications

    • Weight: 1500g excluding vibration mount
    • Dimensions; (DxWxH) 174 x 122 x 63 mm
    • Color; Black/Custom
    • Operating temperature; -40° to +65°C
    • Frequency bands: DM150 – 2.4GHz, 5.2GHz, 5.8GHz / DM151 – 2.4GHz, 5.2GHz,
      5.8GHz and 1.6GHz (GNSS)
    • Power supply: Power Over Ethernet (PoE) Up to 25W
    • Transmit power: Both automatic and manual
    • Transmit power: Up to 2W average / Up to 10W peak
    Download Full Spec Sheet
